How it works

The Botpress NLU module will process every incoming messages and will perform Intent Classification, Language Identification, Entity Extraction and Slot Tagging. The structured data that these tasks provide is added to the message metadata directly (under event.nlu), ready to be consumed by the other modules and components.

QnA: A simple use-case for bots is to understand a question and to provide an answer automatically. Doing that manually for all the questions and answers using the NLU module and the flow editor would be a tedious task, which is why we recommend using the QnA module for that instead.

Intent Classification

Intent classification helps you detect the intent of the users. It is a better and more accurate way to understand what the user is trying to say than using keywords.

Examples

User said	Intent	Confidence
"I want to fly to Dubai tomorrow"	search_flight	0.98
"My flight is delayed, help!"	faq_flight_delayed	0.82
"Can I bring a pet aboard?"	faq_pet	0.85

Adding an intent

To create a new intent, navigate to the NLU module then click "Create new intent". Give it a friendly name, then hit OK. You should now add "utterances" of that intent – that is, add as many ways of expressing that intent as possible.

Flight Booking Example

- book flight
- i want to book a flight
- i want to fly to new york tomorrow
- show me travel options from montreal to tokyo
# provide as many as you can

Responding to an intent

You may detect and reply to intents by looking up the event.nlu.intent.name variable in your hooks, flow transitions or actions.

Here's an example of the structure of an incoming event processed by Botpress Native NLU.

{
  "type": "text",
  "channel": "web",
  "direction": "incoming",
  "payload": {
    "type": "text",
    "text": "hey"
  },
  "target": "AwIiKCRH4gH2GBJgQZd7q",
  "botId": "my-new-bot",
  "threadId": "5",
  "id": 1.5420658919105e+17,
  "preview": "hey",
  "flags": {},
  "nlu": { // <<<<------
    "language": "en", // language identified
    "intent": { // most likely intent, assuming confidence is within config threshold
      "name": "hello",
      "confidence": 1
    },
    "intents": [ // all the intents detected, sorted by probabilities
      {
        "name": "hello",
        "confidence": 1,
        "provider": "native"
      },
      {
        "name": "none",
        "confidence": 1.94931e-8,
        "provider": "native"
      }
    ],
    "entities": [], // extracted entities
    "slots" : {} // extracted slots
  }
}

You can use that metadata in your flows to create transitions when a specific intent is understood inside a specific flow. You can learn more about flows and transitions here.

Example

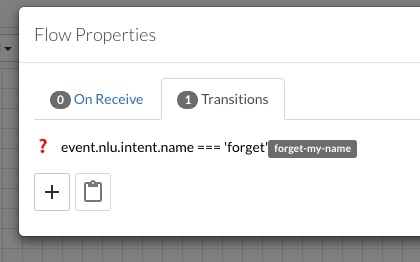

Flow NLU Transition

Confidence and debugging

To enable debugging of the NLU module, make sure that debugModeEnabled is set to true in your data/global/config/nlu.json file.

Tip: In production, you can also use the BP_NLU_DEBUGMODEENABLED environment variable instead of modifying the configuration directly.

Example of debugging message

NLU Extraction

{ text: 'they there bud',
  intent: 'hello',
  confidence: 0.966797,
  bot_min_confidence: 0.3,
  bot_max_confidence: 100,
  is_confident_enough: true,
  language: 'en',
  entities: []
}

Entity Extraction

Entity Extraction helps you extract and normalize known entities from phrases.

Attached to NLU extraction, you will find an entities property which is an array of System and Custom entities.

Using entities

You may access and use data by looking up the event.nlu.entities variable in your hooks, flow transitions or actions.

Example of extracted entity:

User said : Let's go for a five miles run

{
  /* ... other event nlu properties ... */
  entities: [
    {
      type: 'distance',
      meta: {
        confidence: 1
        provider: 'native',
        source: 'five miles', // text from which the entity was extracted
        start: 15, // beginning character index in the input
        end: 25, // end character index in the input
      },
      data: {
        value : 5,
        unit: 'mile',
        extras: {}
      }
    },
    {
      type: 'numeral',
      meta: {
        confidence: 1
        provider: 'native',
        source: 'five', // text from which the entity was extracted
        start: 15, // beginning character index in the input
        end: 19, // end character index in the input
      },
      data: {
        value : 5,
        extras: {}
      }
    }
  ]
}

Note: In some cases you will find additional structured information in the extras object

System Entities

Duckling extraction

Botpress Native NLU offers a handful of system entity extraction thanks to Facebook/Duckling for known entity extraction like Time, Ordinals, Date, etc. For a complete list of system entities, please head to Duckling documentation.

At the moment, Duckling is hosted on our remote servers. If you don't want your data to be sent to our servers, you can either disable this feature by setting ducklingEnabled to false or host your own duckling server and change the ducklingURL to the data/global/config/nlu.json config file.

For instructions on how to host your own Duckling server, please check the Deployment section.

Example

User said	Type	Value	Unit
"Add 5 lbs of sugar to my cart"	"quantity"	5	"pound"

{
  type: 'quantity',
  meta: {
    confidence: 1,
    provider: 'native',
    source: '5 lbs', // text from which the entity was extracted
    start: 4, // beginning character index in original input
    end: 9, // end character index in original input
  },
  data: {
    value : 5,
    unit: 'pound',
    extras: {}
  }
}

Note: Confidence will always be 1 due to the rule based implementation of Duckling

Placeholder extraction (experimental)

Botpress Native NLU also ships a system entity of type any which is essentially a placeholder. This feature is working but requires a lot of training data. Before identifying slots see slots docs as entity type any, try to use custom entities.

An example of placeholder entity would be : Please tell Sarah that she's late

Custom Entities

As of today we provide 2 types of custom entities: pattern and list entities. To define a custom entity, head to the Entity section of the Understanding Module in your botpress studio side bar. From there you'll be able to define your custom entities that will be available for any input message treated by your chatbot. Go ahead and click on create new entity

Sensitive Information

Communication between users and bots are stored in the database, which means that sometimes personal information (eg: credit card) may be persisted as well. To avoid that problem, it is possible to tell Botpress that certain entities are not to be persisted. When creating or editing an Entity, there is a small checkbox located in the upper right corner labeled sensitive.

When checked, the information will still be displayed in the chat window, but the sensitive information will be replaced by ***** before being stored. The original value is still available from event.nlu.entities

Pattern extraction

Once you've created a pattern entity, Botpress Native NLU will perform a regex extraction on each incoming message and add it to event.nlu.entities.

Example :

Given a Pattern Entity definition with [A-Z]{3}-[0-9]{4}-[A-Z]{3} as pattern:

create slot

Extraction will go like:

User said	Type	Value
"Find product BHZ-1234-UYT"	"SKU"	"BHZ-1234-UYT"

{ name: 'SKU',
  type: 'pattern',
  meta:
   { confidence: 1,
     provider: 'native',
     source: 'BHZ-1234-UYT',
     start: 13,
     end: 25,
     raw: {} },
  data: {
    extras: {},
    value: 'BHZ-1234-UYT',
    unit: 'string'
    }
}

List extraction

List extraction will behave in a similar way. The major addition is that for your entity definition, you'll be able to add different occurrences of your entity with corresponding synonyms.

Let's take Airport Codes as an example:

create slot

Extraction will go like:

User said	Type	Value
"Find a flight from SFO to Mumbai"	"Airport Codes"	["SFO", "BOM"]

;[
  {
    name: 'Airport Codes',
    type: 'list',
    meta: {
      confidence: 1,
      provider: 'native',
      source: 'SFO',
      start: 19,
      end: 22,
      raw: {}
    },
    data: {
      extras: {},
      value: 'SFO',
      unit: 'string'
    }
  },
  {
    name: 'Airport Codes',
    type: 'list',
    meta: {
      confidence: 1,
      provider: 'native',
      source: 'Mumbai',
      start: 26,
      end: 32,
      raw: {}
    },
    data: {
      extras: {},
      value: 'BOM',
      unit: 'string'
    }
  }
]

Slots

Slots are another major concept in Botpress NLU. You can think of them as necessary parameters to complete the action associated to an intent.

Slot Tagging

Botpress Native NLU will tag each words (tokens) of user input. If it's correctly identified as an intent slot it will be attached to NLU extraction event. Each identified slot will be accessible in the event.nlu.slots map using its name as key.

To define a slot for a particular intent, head to the Intent section of the Understanding Module in your Botpress Studio side bar. From there select the intent you want to add slots to, then you'll be able to define your slots. Go ahead and click on create a slot

create slot

Let's use a find_flight intent. In order to book a flight, we'll define 2 slots: airport_from and airport_to both associated with the Airport Codes custom list entity. Once that is done, we need to identify every airport slots.

tag slots

Example

User said : I would like to go to SFO from Mumbai

event.nlu.slots will look like

slots : {
  airport_to: {
    name: 'airport_to',
    value: 'SFO', // shorthand for entity.data.value
    entity: [Object] //detailed extracted entity
  },
  airport_from: {
    name: 'airport_from',
    value: 'BOM',  // shorthand for entity.data.value
    entity: [Object] //detailed extracted entity
  }
}

Slot Filling

Slot filling is the process of gathering information required by an intent. This information is defined as slots as we mentioned in the above section. Previously, slot filling was made manually and would result in a lot of manipulation. Since 11.8 you can use the Slot skill to help with slot filling. Please refer to the Slot Skill tutorial for further details.

Language Server

The language server provides additional information about words, which allows your bot to understand words with a similar meaning even if you didn't specifically taught it about it. By default, your Botpress server will query one of our language server for that purpose. You can also choose to host your own server if you would like to keep everything on your premise. Head over to the Hosting page for more details.

External NLU Providers

Botpress NLU ships with a native NLU engine (Botpress Native NLU). The advantage of using Botpress NLU is that it is fast (both at training and evaluation time), secured (doesn't hit the cloud), predictable (you can write unit tests, the model resides on your computer) and free.

If for some reason you want to use an external provider, you can do so by using Hooks and calling the external NLU provider via API. There's a detailed example here

Note: We have dropped support (see why) for two-way synchronization as there were too many issues in doing (and maintaining) that. You'll have to maintain this yourself if you go this way. We're open to contributions for both implementation and maintenance of 3rd party NLU integrations.

Features by Providers

Provider	Intent	Entity	Slot tagging	Lang	Context	Sentiment
Native	X	X	X	X	X
DialogFlow	X	X	X		X
Luis	X	X				X
Recast	X	X		X		X
Rasa	X	X

If you didn't get any error when starting Botpress for the first time, you can ship this section and move to the Quick Start guide.

> I see `Error Training Model`

Botpress Native NLU depends on the fastText library to build and run models. On some Linux distributions, you may be required to build it manually. If you get an error like the following, you will need to compile the library yourself.

Mod[nlu][native] Error training model

Prerequisite

If you already have make and g++ installed, you can skip to the next section, Building

sudo apt update
sudo apt install make
sudo apt install g++

Building

Type these commands to generate the binary for your specific platform:

wget https://github.com/facebookresearch/fastText/archive/v0.1.0.zip
unzip v0.1.0.zip
cd fastText-0.1.0
make

Then edit the NLU config file in data/global/config/nlu.json and add the fastTextPath pointing to the fasttext binary

  // ...
  "confidenceTreshold": 0.7,
  "fastTextPath": "/home/ubuntu/fastText-0.1.0/fasttext"
  // ...
